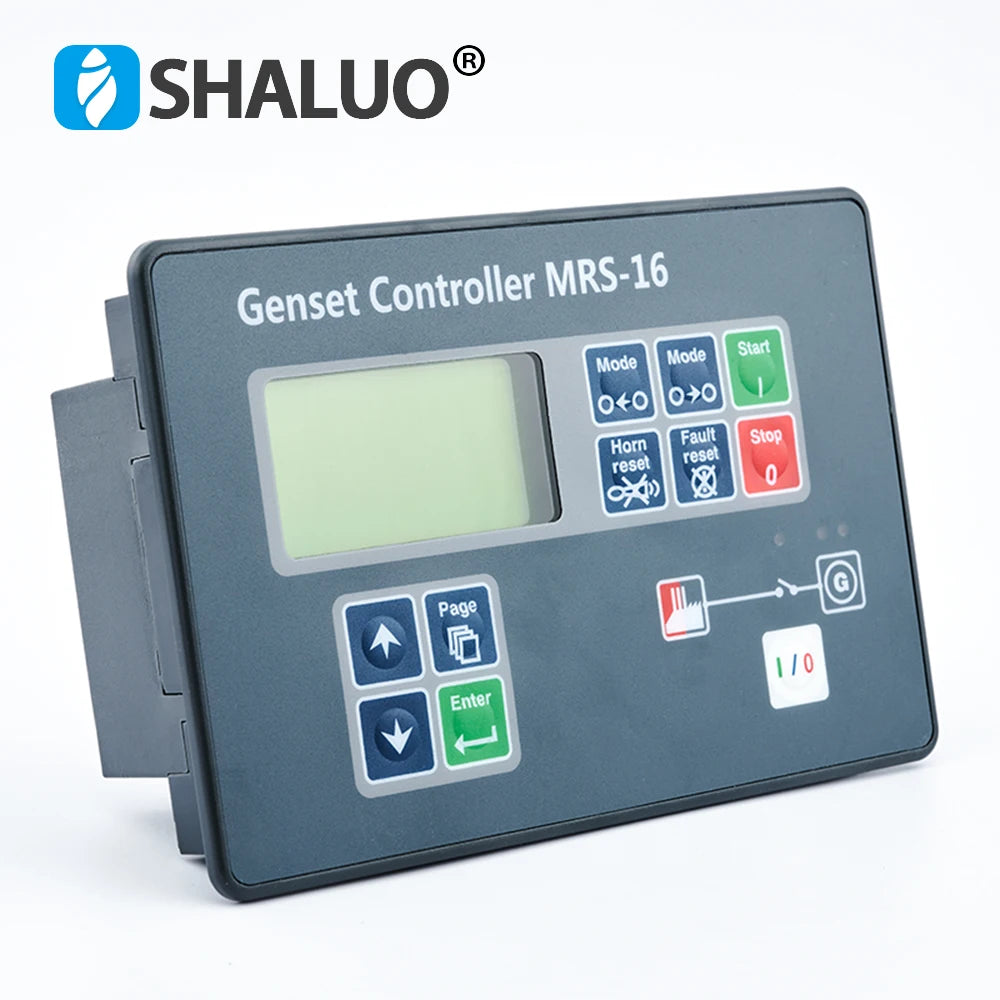

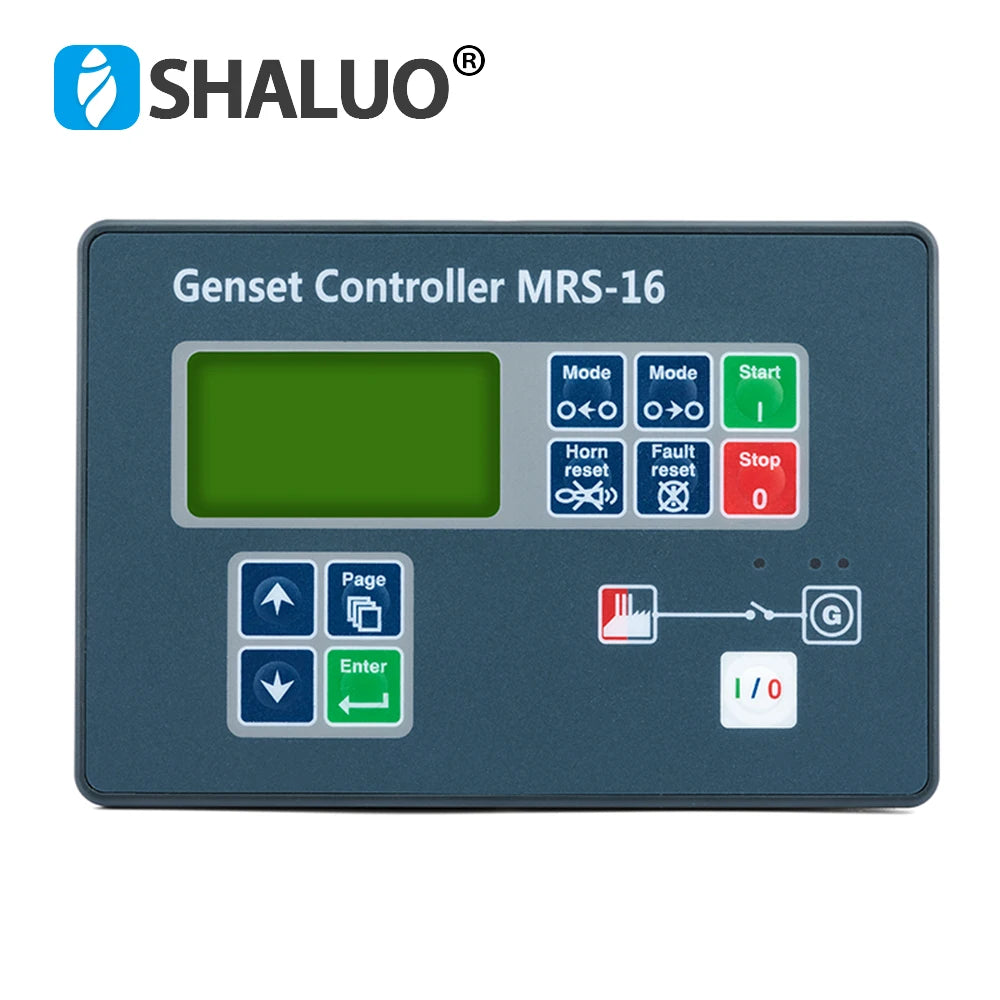

MRS16 MRS10 Diesel Generator Controller Panel Remote Auto Start LCD Display Control Module Compatible With Original
MRS10
Sale price
$277.99 USD
Regular price
$415.99 USD
Skip to product information

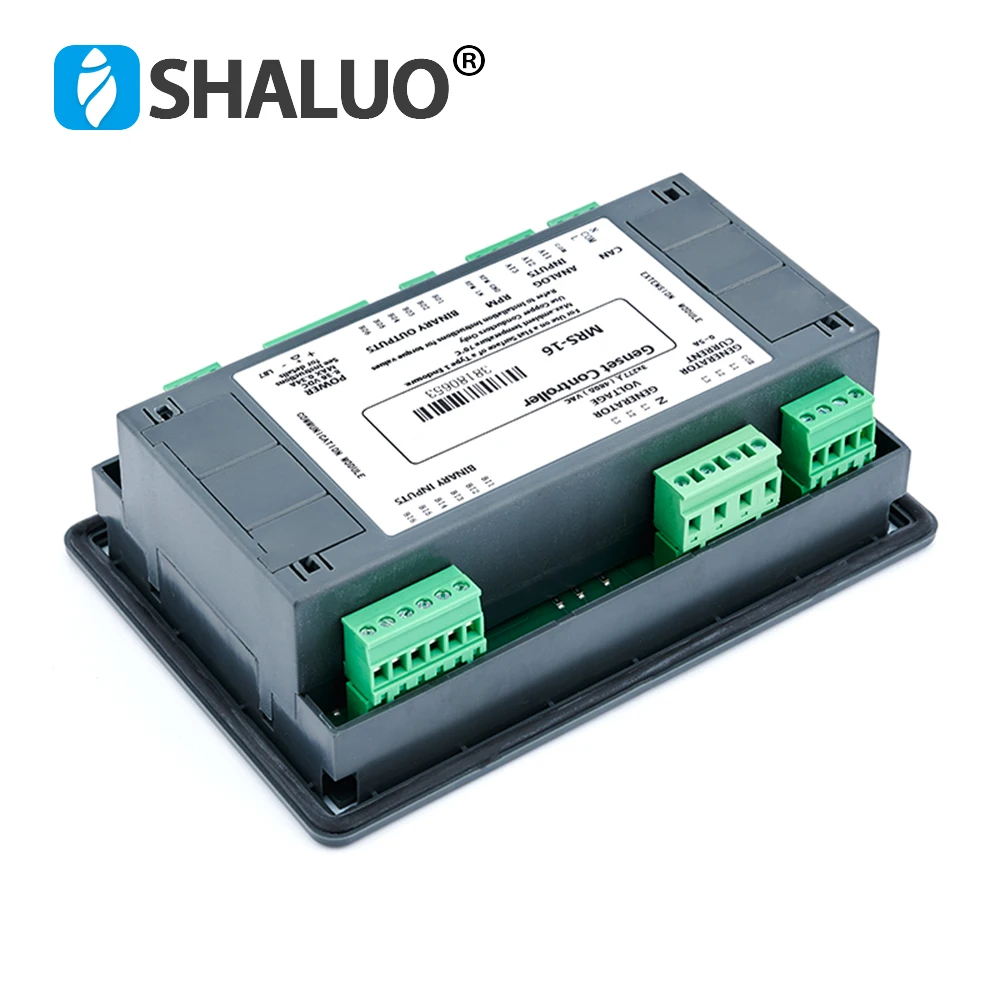

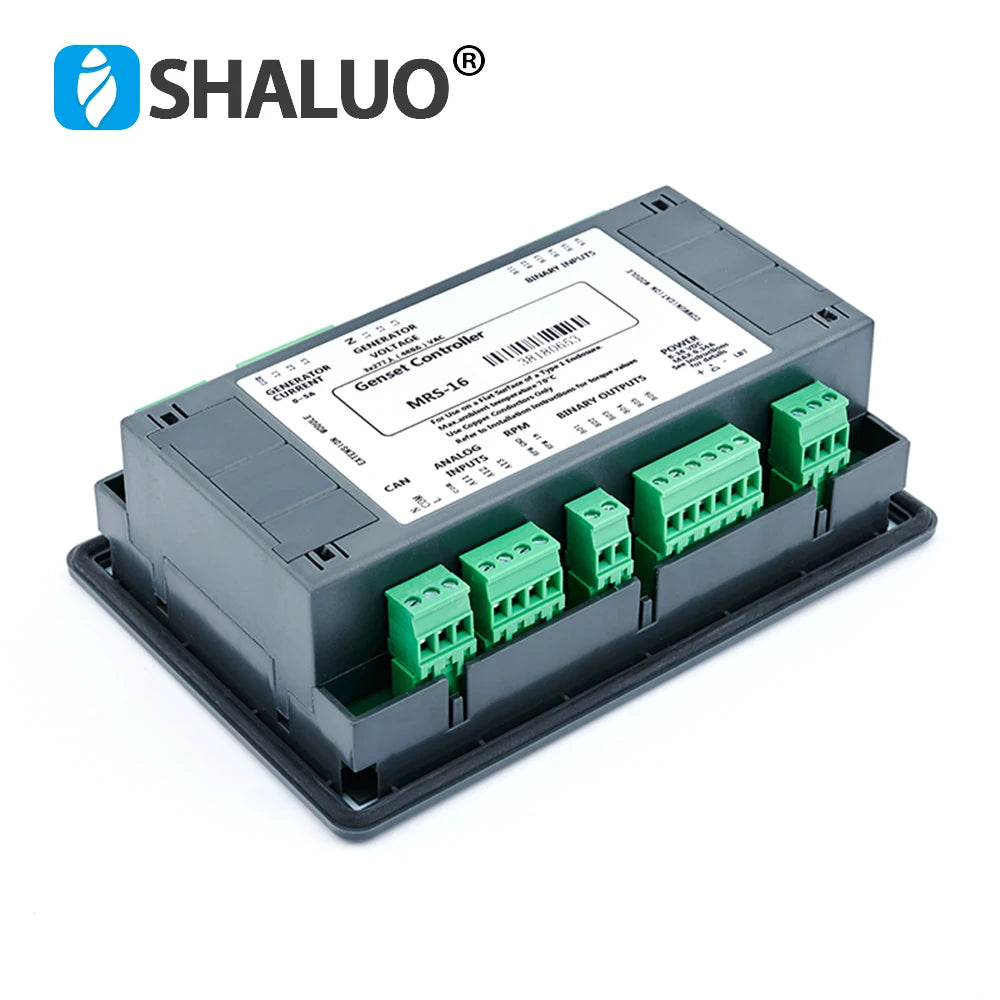

MRS16 MRS10 Diesel Generator Controller Panel Remote Auto Start LCD Display Control Module Compatible With Original
Sale price
$277.99 USD
Regular price
$415.99 USD
General Description ：
Description of the controller system (with all options)
InteliLite NT -MRS is a comprehensive controller for single generating sets. IL-NT MRS 15/16 features extended support of electronic engines and extension modules.

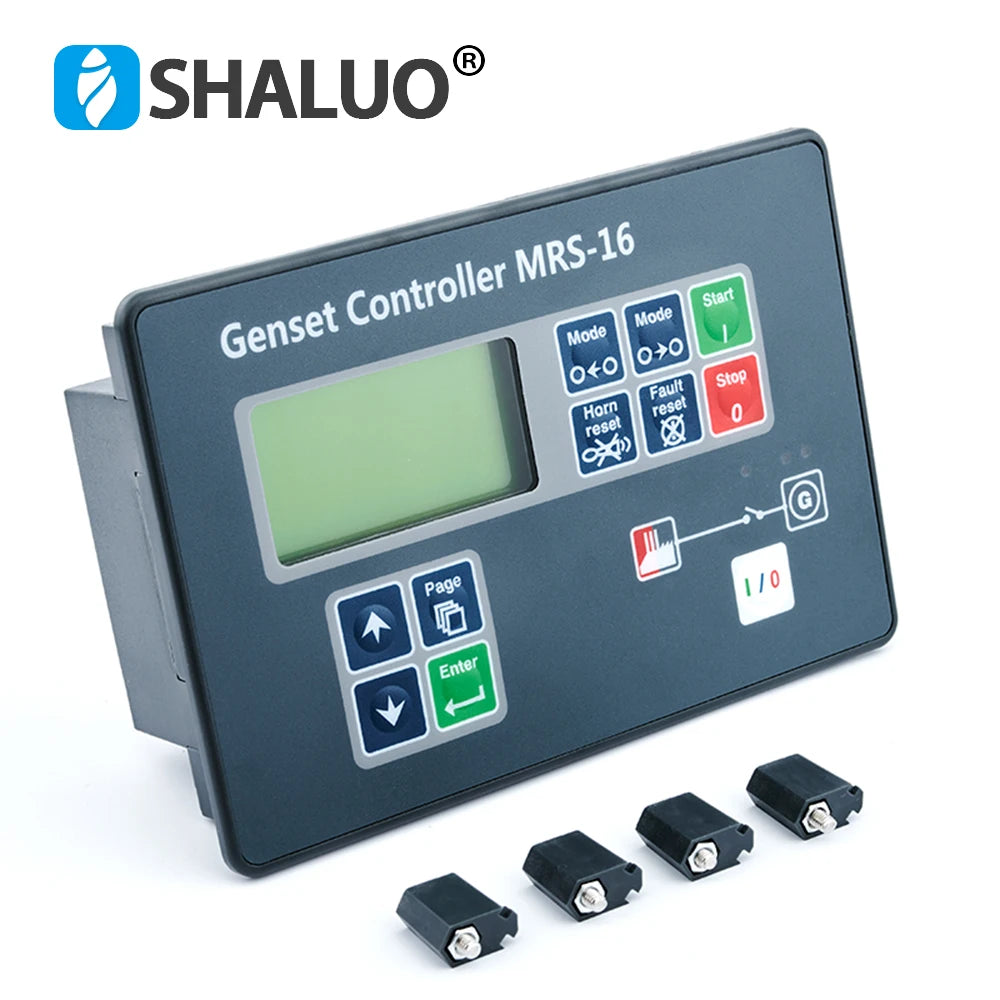

InteliLite NT controllers are equipped with a powerful graphic display showing icons, symbols and bar-graphs for intuitive operation, which sets, together with high functionality, new standards in Gen-set controls.
InteliLite automatically starts the Gen-set, closes the Gen-set C.B. when all conditions are met, then stops the engine on external signal or by pressing push buttons.
InteliLite NT provides gas engine support without ventilation.
The key feature of InteliLite NT is its easy-to-use operation and installation. Predefined configurations for typical applications are available as well as user-defined configurations for special applications
Remote control ：
InteliLite NT controller can be remotely controlled. In case of the work on the gen-set check, that nobody can remotely start the engine.
To be sure:
Disconnect remote control via RS232 line
Disconnect input REM START/STOP
or Disconnect output STARTER and outputs GCB CLOSE/OPEN
IL-NT RS232 is optional plug-in card to enable InteliLite NT for RS232 communication. This is required for computer or Modbus connectin. Card inserts into expansion slot back on the controller.
To insert the module, you must open the cover first (use screwdriver to open) and then insert the module into slot. Once you have insert it, the module will snap under plastic teeth. It is supposed to be installed permanently. Should you need to remove it, the safest way is to remove whole back cover and than remove module manually
（you need to buy RS232 communication module extraly）

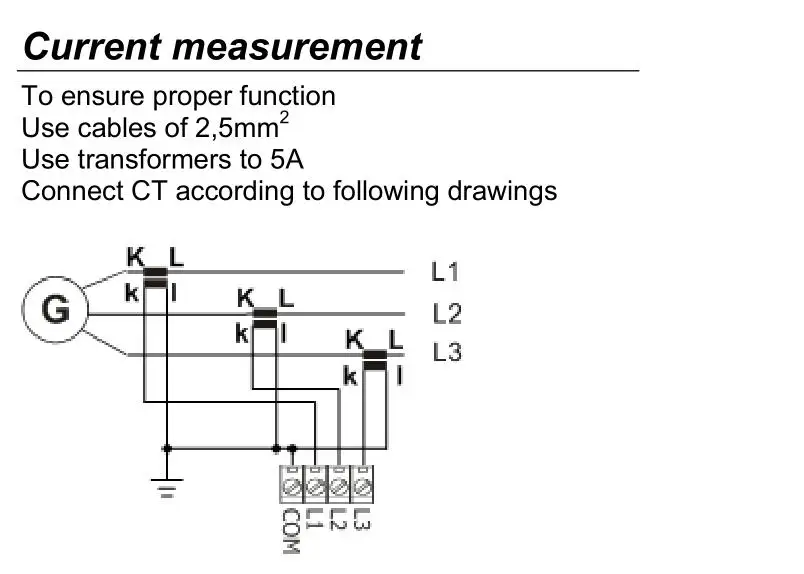

Current measurement
To ensure proper function
Use cables of 2,5mm 2
Use transformers to 5A
Connect CT according to following drawings. Terminals L2l and L3l are opened.
